DEUTSCH DT Series Backshells

Product Downloads

DT Backshells Specification

Download

DT Backshells Specifications

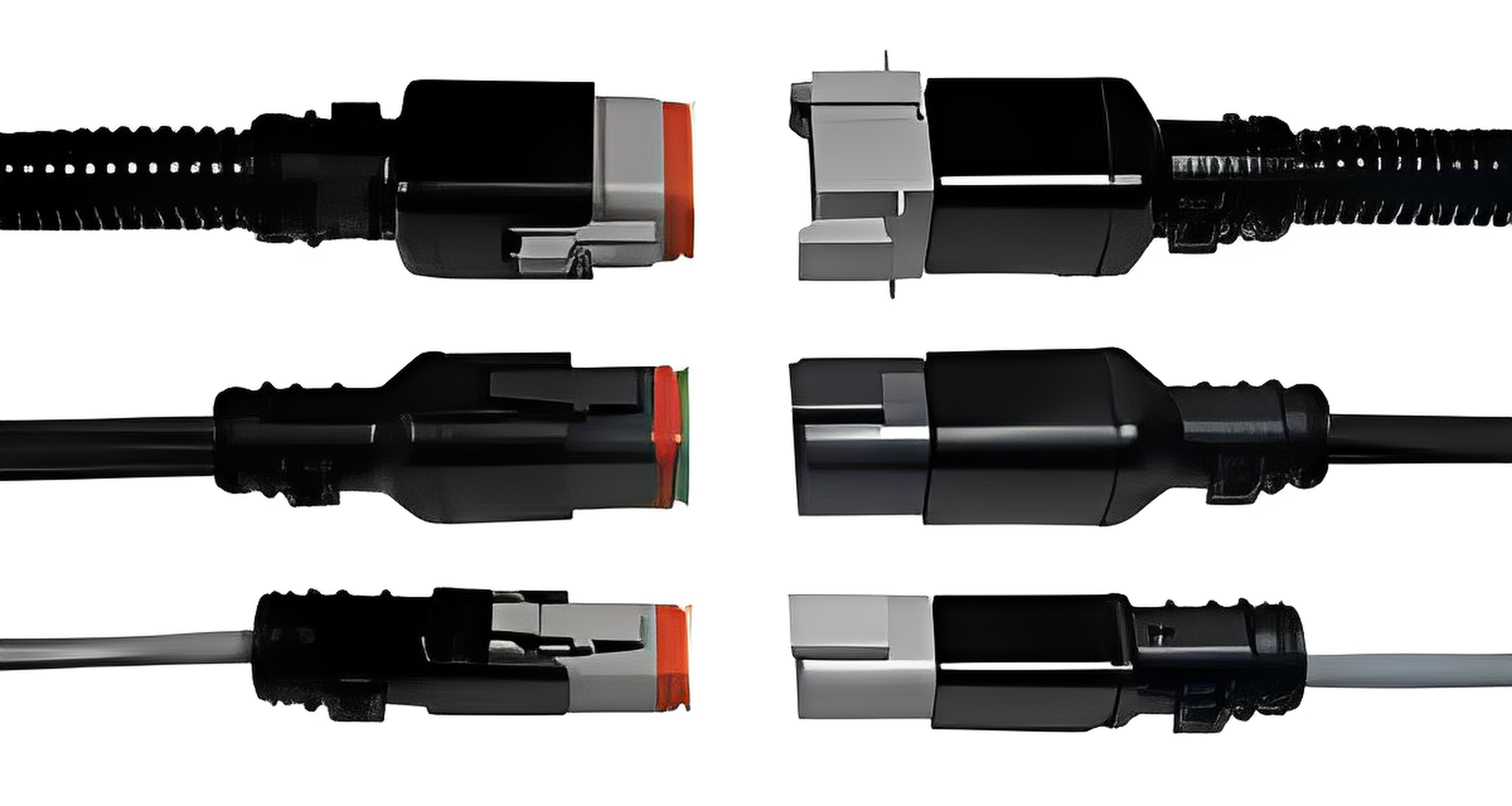

Deutsch DT Series backshells are designed to snap onto and mate with all standard (basic plug and receptacles without modifications) DT Series connectors. The rigid, durable backshells offer a high level of protection and allow convoluted tubing to nest within the rear of the backshell. Straight (180°) and right angle (90°) versions and backshells with strain relief for jacketed cable are also available.

Receptacle Backshells

DT04-2P: Style: 90°, 180° Tubing Size (mm): 6, 7.5, 8.5, 10 P/N: 1011-229-0205, 1011-257-0205 (with Strain Relief), 1011-230-0205, 1011-258-0205 (with Strain Relief)
DTM*04-2P: Style: 180° Tubing Size (mm): 7.5, 8.5 P/N: 1028-021-0205
DT04-3P: Style: 90°, 180° Tubing Size (mm): 6, 7.5, 8.5, 10 P/N: 1011-233-0305, 1011-261-0305 (with Strain Relief), 1011-234-0305, 1011-262-0305 (with Strain Relief)
DT04-4P: Style: 90°, 180° Tubing Size (mm): 6, 7.5, 8.5, 10 P/N: 1011-237-0405, 1011-265-0405 (with Strain Relief), 1011-238-0405, 1011-266-0405 (with Strain Relief)
DTM*04-4P: Style: 180° Tubing Style (mm): 8.5 P/N: 1028-027-0405
DT04-6P: Style: 90°, 180° Tubing Style (mm): 8.5, 10, 13 P/N: 1011-241-0605, 1011-269-0605 (with Strain Relief), 1011-242-0605, 1011-270-0605 (with Strain Relief)
DT04-08P*: Style: 90°, 180° Tubing Style (mm): 8.5, 10, 13 P/N: 1011-245-0805, 1011-246-0805
DT04-12P*: Style: 90°, 180° Tubing Style (mm): 10, 13, 17 P/N: 1011-249-1205, 1011-250-1205

Plug Backshells

DT06-2S: Style: 90°, 180° Tubing Size (mm): 6, 7.5, 8.5, 10 P/N: 1011-227-0205, 1011-255-0205 (with Strain Relief), 1011-228-0205, 1011-256-0205
DTM06-2S: Style: 180° Tubing Size (mm): 7.5, 8.5 P/N: 1011-273-0205
DTM*06-2S: Style: 180° Tubing Size (mm): 8.5 P/N: 1028-041-0205
DT06-3S: Style: 90°, 180° Tubing Size (mm): 6, 7.5, 8.5, 10 P/N: 1011-231-0305, 1011-259-0305 (with Strain Relief), 1011-232-0305, 1011-260-0305 (Strain Relief)
DT06-4S: Style: 90°, 180° Tubing Size (mm): 6, 7.5, 8.5, 10 P/N: 1011-235-0405, 1011-263-0405 (with Strain Relief), 1011-236-0405, 1011-264-0405 (with Strain Relief)
DTM*06-4S: Style: 180° Tubing Size (mm): 8.5 P/N: 1028-008-0405
DT06-6S: Style: 90°, 180° Tubing Size (mm): 8.5, 10, 13 P/N: 1011-239-0605, 1011-267-0605 (with Strain Relief), 1011-240-0605, 1011-268-0605 (with Strain Relief)
DT06-08S*: Style: 90°, 180° Tubing Size (mm): 8.5, 10, 13 P/N: 1011-243-0805, 1011-244-0805
DT06-12S*: Style: 90°, 180° Tubing Size (mm): 10, 13, 17 P/N: 1011-247-1205, 1011-248-1205
DT06-12S*-****: Style: 180° Tubing Size (mm): 13, 17 P/N: 1028-043-1205

Pull Off Strength

DT04-2P / DT06-2S: FP [N]: 50 / 50 FT [N]: 50 / 10
DT04-3P / DT06-3S: FP [N]: 50 / 50 FT [N]: 50 / 50
DT04-4P / DT06-4S: FP [N]: 50 / 50 FT [N]: 50 / 25
DT04-6P / DT06-6S: FP [N]: 50 / 50 FT [N]: 50 / 30
DT04-08P* / DT06-08S*: FP [N]: 50 / 50 FT [N]: 50 / 35
DT04-12P* / DT06-12S*: FP [N]: 50 / 50 50 FT [N]: 50 / 40
