Home > DEUTSCH Connectors > DEUTSCH DRB Series > DEUTSCH DRB Series Connectors

DEUTSCH DRB Series Connectors

Product Downloads

DRB Data Sheet

Download

Heavy-duty

Connectors

Multiple mounting options

Mounting flange and wire arrangements

14-20 AWG

Wire gauge compatibility

High pin counts

48, 60, 102 and 128 cavities

DRB Connector Specifications

DEUTSCH DRB series connectors are heavy-duty connectors, made for bulkhead applications. Designed to accommodate multiple wire gauges and featuring high pin counts, these offer a high volume of design flexibility.

Part Number(s)

  • Numbering System: DRB 16 - 60 S * E - ****
  • 48 Position – Key A: DRB16-48-SAE-LO18 (Plug) & DRB12-48PAE-LO18 (Receptacle)
  • 48 Position – Key B: DRB16-48SBE-L018 (Plug) & DRB12-48PBE-L018 (Receptacle)
  • 48 Position – Key C: DRB16-48SCE-L018 (Plug) & DRB12-48PCE-L018 (Receptacle)
  • 48 Position – Key D: DRB16-48SDE-L018 (Plug) & DRB12-48PDE-L018 (Receptacle)
  • 60 Position – Key A: DRB16-60SAE-L018 (Plug) & DRB12-60PAE-L018 (Receptacle)
  • 60 Position – Key B: DRB16-60SBE-L018 (Plug) & DRB12-60PBE-L018 (Receptacle)
  • 60 Position – Key C: DRB16-60SCE-L018 (Plug) & DRB12-60PCE-L018 (Receptacle)
  • 60 Position – Key D: DRB16-60SDE-L018 (Plug) & DRB12-60PDE-L018 (Receptacle)
  • 102 Position – Key A: DRB16-102SAE-L018 (Plug) & DRB12-102PAE-L018 (Receptacle)
  • 102 Position – Key B: DRB16-102SBE-L018 (Plug) & DRB12-102PBE-L018 (Receptacle)
  • 102 Position – Key C: DRB16-102SCE-L018 (Plug) & DRB12-102PCE-L018 (Receptacle)
  • 102 Position – Key D: DRB16-102SDE-L018 (Plug) & DRB12-102PDE-L018 (Receptacle)
  • 128 Position – Key A: DRB16-128SAE-L018 (Plug) & DRB12-128PAE-L018 (Receptacle)
  • 128 Position – Key B: DRB16-128SBE-L018 (Plug) & DRB12-128PBE-L018 (Receptacle)
  • 128 Position – Key C: DRB16-128SCE-L018 (Plug) & DRB12-128PCE-L018 (Receptacle)
  • 128 Position – Key D: DRB16-128SDE-L018 (Plug) & DRB12-128PDE-L018 (Receptacle)

Performance Specifications

  • Temperature: Operating at temperatures -55°C to +125°C
  • Durability: No electrical or mechanical defects after 100 cycles of engagement and disengagement.
  • Vibration: No unlocking or unmating and exhibits no mechanical or physical damage after sinusoidal vibration levels of 20 G’s at 10 to 2000 Hz in each of the three mutually perpendicular planes. No electrical discontinuities longer than 1 microsecond.
  • Fluid Resistance: Connectors show no damage when exposed to most fluids used in industrial applications.
  • Insulation Resistance: 1000 megohms minimum at 25°C.
  • Immersion: IP68 rating
  • Moisture Resistance: Properly wired and mated connections will withstand immersion under three feet of water without loss of electronic qualities or leakage
  • Dielectric Withstanding Voltage: Current leakage less than 2 milliamps at 1500 volts AC.
  • Thermal Cycle: No cracking, chipping or leaking after 20 test cycles from -55°C to +125°C.

Reference Dimensions (102 cavity)

  • Plug Length: 45.16 mm
  • Plug Height: 75.34 mm
  • Plug Width: 125.76 mm
  • Receptacle Length: 58.19 mm
  • Receptacle Height: 75.34 mm
  • Receptacle Width: 125.76 mm

DRB Series Required Components

A complete DRB assembly requires a wedgelock for each plug and receptacle and a mounting flange. Wedgelocks are required to confirm proper contact placement.

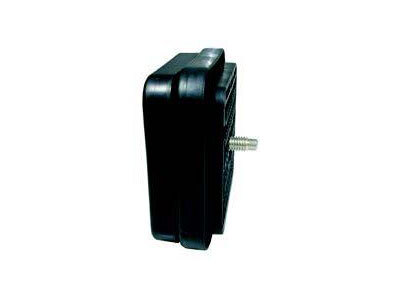

Plug

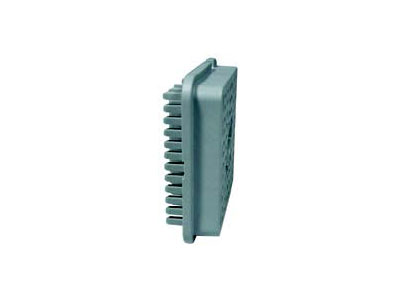

Plug Wedgelock

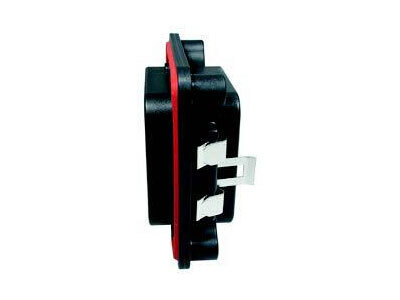

Flange

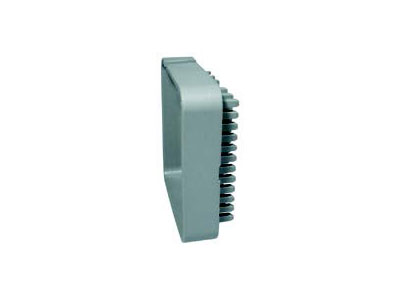

Receptacle Wedgelock

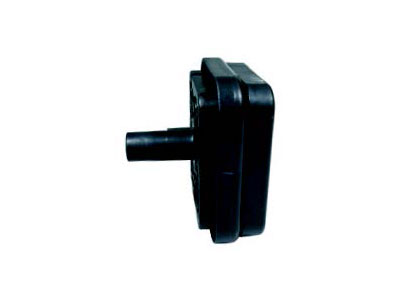

Receptacle

DRB Series Connector Resources

DRB Series Data Sheet

Download

Get pricing and support

As authorised distribution partners, we’re here to help you with dedicated product support, design expertise and market-leading prices.

Get Pricing
