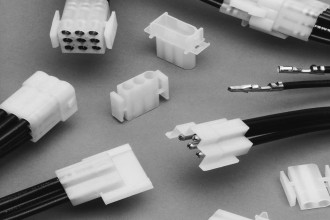

The UL recognised .140 MATEN-LOK connectors with 3.5 mm diameter pins and sockets, have a 25 A current carrying capacity and are capable of accepting wire with insulation diameters up to 4.5 mm. Both pins and sockets are equipped with dual locking lances, which assure positive contact retention when installed in the housings. The seam of the socket is S-shaped, which allows an easy mating and unmating of the contacts. Special contacts of copper-laminated steel and high temperature-resistant housing (up to 105 °C) are used in applications with high temperatures and high currents for example ovens.
This versatile family of TE Connectivity connectors offers a wide selection of sizes and configurations. A few of the many available versions include connectors for free-hanging applications, special versions including those for mixed loading, which have been used in the automotive industry for years.
Available in 2, 3 and 9 circuit configurations for panel mounting; 4, 9 and 18 circuit configurations for free-hanging applications
Standard natural colored polyamide housings
Contacts accept wire size range 0.5–5.0 mm2 (20–10 AWG) with insulation diameters from 2.5 to 4.6 mm
Dual locking lances assure optimum contact stability
Contacts are on 6.09 mm centerline spacing
