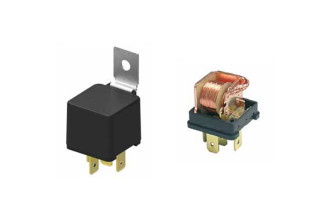

Homologated relay design is available in three different mounting options. The automotive Relay with plug-in terminals for 12V system or 24V and rated current up to 40A.
Part number structure 0.aa.b.c.dd.xxx.yy for example O.2.D.2.04.101.30
0 = Homologated relay
aa = 10 – Normally open, 20 – Change Over, 50 – Normally open type A, 51- Change over type A, 60 – Normally open silver contacts, 61 – Normally open type A silver contacts
b = 0 – No suppression, R – Resistance, D – Diode
c = 2 – 12V DC, 4 – 24V DC
dd = 04 – 4 Terminals, 05 – 5 Termnals
xxx = 001 – Plastic bracket, 101 – Optional metal bracket
yy = 30 – Changeover 24V Silver Contacts, 40 – Changeover 12V Silver Contacts
Plug-in automotive relay for 12V or 24V system
Designed according to ISO 7588-1
