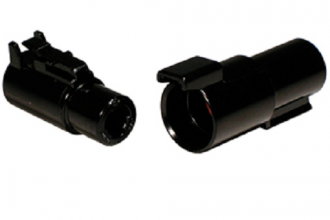

DTHD connectors are single terminal connectors for heavy duty applications. Easy to install, environmentally sealed and compact in size, they are a simple, field serviceable alternative to a splice. DTHD connectors are available in three sizes, carry 25 to 100 amps, and can be mounted or used in-line.
Here are some of the common part numbers in the DTHD series. Several additional connectors may be available.
| Position | Contact Size | Plug | Receptacle |
|
1
|
12 | DTHD06-1-12S | DTHD04-1-12P |
| 8 | DTHD06-1-8S | DTHD04-1-8P | |
| 4 | DTHD06-1-4S | DTHD04-1-4P | |
| 12 | DTHD06-1-12S | DTHD04-1-12P |
TE Connectivity’s industrial and commercial transportation connectors are available in a variety of materials, shapes, wire gauge options, cavity counts and mounting options to suit a wide range of applications. TE’s reference guide to TE Connectivity’s industrial & commercial transportation connectors and accessories.
http://www.te.com/connector-selector
Browse all DEUTSCH Connectors >
DEUTSCH connector product guide for industrial and commercial vehicles >
Accepts contact sizes 4 (100 amps), 8 (60 amps), and 12 (25 amps)
6-14 AWG
1 cavity arrangement
In-line or flange mount
Circular, thermoplastic housing
Integrated latch for mating
