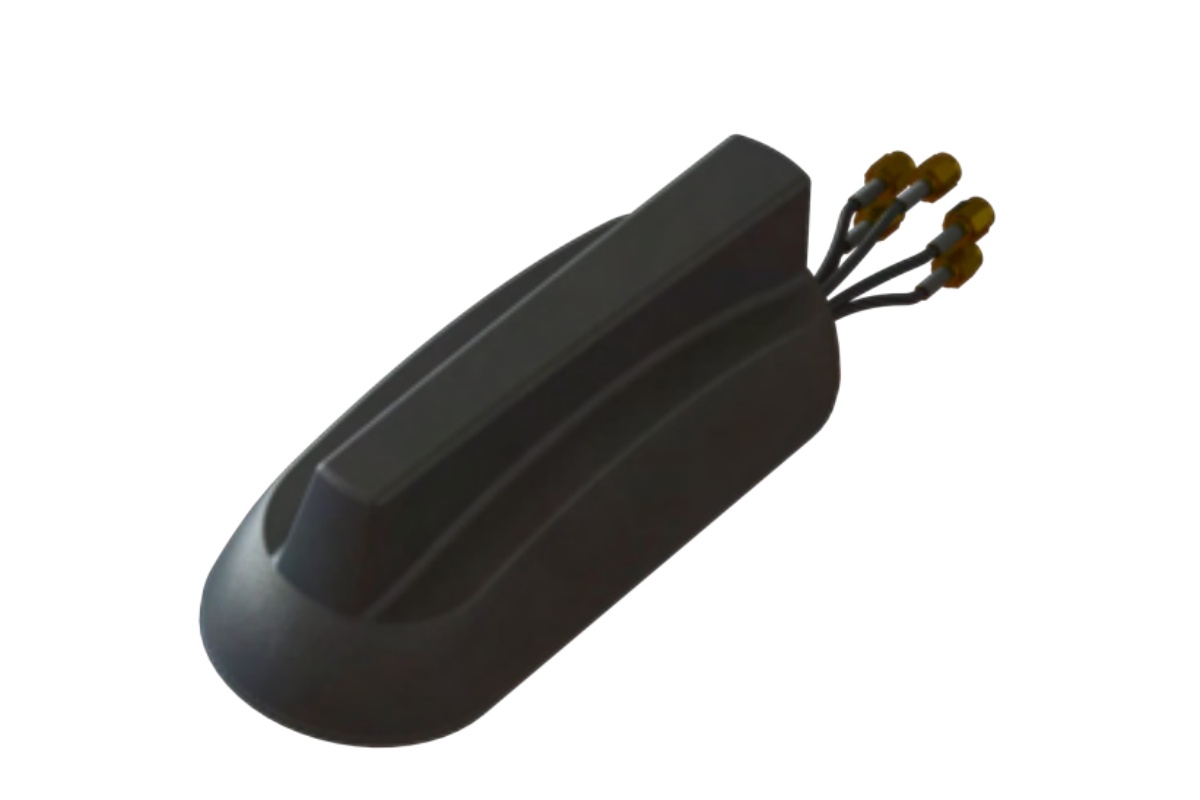

The Gar family offers up to 5 different port assignments including, MIMO and multiple ports of LTE/ Cell, WiFi, GNSS & GPS. Suited to Fleet, lower profile applications or when UHF is not required.
| Part Number | No. of Ports | Port Type | Frequency (MHz) | VSWR | Isolation (dB) | Peak Gain (dBi) | Cable Type (Length)* | Connector | Colour |
| VFP69383x22JN518x | 5 | LTE1/LTE2 | 698-960/1690-3800 | 2.5/2.1 | -11/-14 | 1.6/7.2 | LMR100 (0.3m/1ft); LMR195 (4.9m/16ft) | J or L – SMA male
N – Mini UHF |
B – Black
W – White |
| WiFi1/WiFi2 | 2400-2500/4900-6000 | 2.0/2.0 | -14/-32 | 3.1/7.5 | LMR100 (0.3m/1ft); LMR195 (4.9m/16ft) | J – SMA male
L – RPSMA male N – RPTNC male |
|||
| GNSS | 1559-1606 | 2.0 | -41 | 30 | RG174 (5.2m/17ft) | J or L – SMA male
N – TNC male |
|||
| VFQ69383x21JN518L | 4 | LTE1/LTE2 | 698-960/1690-3800 | 2.5/2.0 | -10/-14 | 1.8/7.4 | LMR100 (0.3m/1ft); LMR195 (4.9m/16ft) | SMA – male | B – Black
W – White |
| WiFi1 | 2400-2500/4900-6000 | 2.0/2.1 | -14/-35 | 3.1/7.0 | LMR100 (0.3m/1ft); LMR195 (4.9m/16ft) | RPSMA -male | |||
| GNSS | 1559-1606 | 2.0 | -39 | 32 | RG174 (5.2m/17ft) | SMA -male | |||
| VFT69383x11JN518L | 3 | LTE1 | 698-960/1690-3800 | 2.5/2.0 | -41/-24 | 2.3/7.3 | LMR100 (0.3m/1ft); LMR195 (4.9m/16ft) | SMA – male | B – Black
W – White |
| WiFi1 | 2400-2500/4900-6000 | 2.0/2.0 | -24/-35 | 3.9/5.4 | LMR100 (0.3m/1ft); LMR195 (4.9m/16ft) | RPSMA – male | |||
| GNSS | 1559-1606 | 2.0 | -41 | 32 | RG174 (5.2m/17ft) | SMA – male | |||
| VFT69383x2NJN518Q | 3 | LTE1/LTE2 | 698-960/1690-3800 | 2.5/2.1 | -10/-17 | 2.2/7.5 | LMR100 (0.3m/1ft); LMR195 (4.9m/16ft) | SMA – male | B – Black
W – White |
| GNSS | 1559-1606 | 2.0 | -33 | 32 | RG174 (5.2m/17ft) | ||||
| VFD69383x1NJN518Q | 2 | LTE1 | 698-960/1690-3800 | 2.5/2.1 | -38/-26 | 2.0/7.0 | LMR100 (0.3m/1ft); LMR195 (4.9m/16ft) | SMA – male | B – Black
W – White |
| GNSS | 1559-1606 | 2.0 | 32 | RG174 (5.2m/17ft) | |||||
| VFD69383x2NNN518R | 2 | LTE1/LTE2 | 698-960/1690-3800 | 2.5/2.1 | -11/-16 | 2.1/7/2 | LMR100 (0.3m/1ft); LMR195 (4.9m/16ft) | SMA – male | B – Black
W – White |
*LMR or equivalent.
