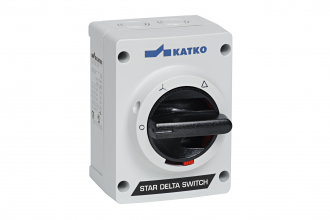

Polycarbonate enclosed IP66 TKM 16-40A motor control switches offer a rated thermal current I (the) of 16-40A.
| Type | AC-21 | 400 V | AC-22 | 400 V | AC-23 | EAN-Code | Enclosure | |||
| 415 V | 415 V | 400 V | ||||||||
| 690 V | 690 V | 415 V | ||||||||
| Grey/black | Yellow/red | Ie / A | Ie / A | Ie / A | Grey/black | Yellow/red | ||||
| Star-delta | ||||||||||
| TKM 316U TK | TKM 316U TK Y/R | 16 A | 16 A | 16A | 7.5 kW | 6419410344828 | 6419410344842 | U2 | ||
| TKM 325U TK | TKM 325U TK Y/R | 25 A | 25 A | 25A | 11 kW | 6419410345023 | 6419410345030 | U2 | ||
| TKM 340U TK | TKM 340U TK Y/R | 40 A | 40 A | 40A | 22 kW | 6419410345627 | 6419410345641 | U2 | ||
| Reverse | ||||||||||
| TKM 316U SK | TKM 316U SK Y/R | 16 A | 16 A | 16A | 7.5 Kw | 6419410344729 | 6419410344743 | U2 | ||
| TKM 325U SK | TKM 325U SK Y/R | 25 A | 25 A | 25A | 11 kW | 6419410345221 | 6419410345238 | U2 | ||
| TKM 340U SK | TKM 340U SK Y/R | 40 A | 40 A | 40A | 22 kW | 6419410345962 | 6419410345986 | U2 | ||
Cam switches
Polycarbonate enclosed
IP66
Padlockable with three locks
Door interlock with defeat mechanism
Terminals: Cu 1,5 - 16 mm 2
Max. terminal torque: 1,8 Nm
IEC 60 947-3
TK= star delta, SK= reverse switch
Tested according to IEC 60947-3
