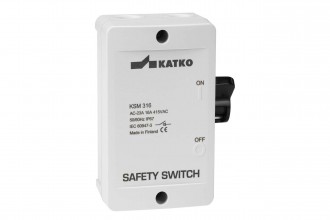

KSM Side operated IP67 safety switch disconnector requires no cable glands. Easy to install and compact in size. The enclosure can be sealed to any position, the fully rated load break switch is available as a 2, 3, 4 pole and a 3 pole with auxiliary contacts.
| Type | AC23 / 400 V | AC23 / 690 V | EAN-Code | Enclosure | ||
| Grey/black | Yellow/red | Grey/black | Yellow/red | |||
| 2-pole | ||||||
| KSM 216U | KSM 216U Y/R | 16 A/7.5 kW | – | 6419410328347 | 6419410328170 | U1 |
| KSM 225U | KSM 225U Y/R | 25 A / 11 kW | – | 6419410328385 | 6419410328460 | U1 |
| 3-pole | ||||||
| KSM 316U | KSM 316U Y/R | 16 A/7.5 kW | – | 6419410328354 | 6419410328163 | U1 |
| KSM 316US | KSM 316US Y/R | 16 A/7.5 kW | – | 6419410328378 | 6419410328194 | U1 |
| KSM 325U | KSM 325U Y/R | 25 A / 11 kW | – | 6419410328392 | 6419410328477 | U1 |
| KSM 325US | KSM 325US Y/R | 25 A / 11 kW | – | 6419410328415 | 6419410328491 | |
| 4-pole | ||||||
| KSM 416U | KSM 416U Y/R | 16 A/7.5 kW | – | 6419410328361 | 6419410328187 | U1 |
| KSM 425U | KSM 425U Y/R | 25 A / 11 Kw | – | 6419410328408 | 6419410328484 | U1 |
*with auxiliary contact, Y/R=yellow/red
IP67 membrane gasket cable entries with strain relief
IP65 with cable gland version
Fully rated Load Break Switch
Good resistance against UV and many chemicals
Padlockable handle
Available 2, 3, 4P and 3P with auxiliary contact(s)
Tested according to IEC 60947-3
