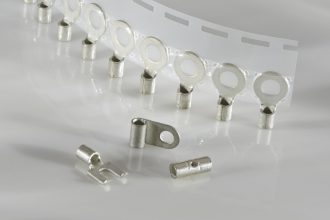

The proven “W” Crimp applied with precisely controlled pressure permits the use of a shorter terminal barrel. An excellent feature for confined area termination. The SOLISTRAND Terminals and Splices in combination with the “W” Crimp create terminations of optimum electrical properties and are completely reliable; giving long service in hard environment. SOLISTRAND terminals are made of high conductivity copper, electro tinned for improved corrosion resistance. The completely closed barrel with serrations inside provides an optimum tensile strength and maximum electrical contact after crimping. The barrel has a conical entry for easy wire insertion. The “W” Crimp is actually two longitudinal crimps providing that the conductor within the barrel flows together into the serrations or dimples of the terminal barrel, creating one homogeneous mass of copper. The two indents also help to center the conductor within the barrel for uniform crimping of the barrel around the wire. Because TE Connectivity matches the terminal to the tool each termination is uniform making quality control easy and performance consistent. SOLISTRAND products are UL listed File E 13288 and certified by CSA File LR 7189.
Brazed Seam. The barrel is completely closed and seam is brazed for uniform metal strength around the entire barrel area
Bell Mouth. Bell shape of barrel entrance makes insertion of wires easier
Dimples or Serrations. Inner surface either dimpled or serrated for optimum tensile strength and maximum electrical contact area after crimping
Each termination is uniform making quality control easy and performance consistent
