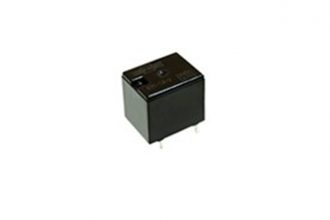

Song Chuan Series No. 895 automotive relay is used in general purpose application for motor control for power window, sunroof, door lock, and flasher control, etc.
| Terminal style | Contact form | Enclosure style | ||
| Flux tight | Sealed type | Sealed type washable |
||
| PCB terminal | 1A (SPNO) | 895-1A-C | 895-1A-V | 895-1A-S |
| 895-1A-C-H | 895-1A-V-H | 895-1A-S-H | ||
| 1C (SPDT) | 895-1C-C | 895-1C-V | 895-1C-S | |
| 895-1C-C-H | 895-1C-V-H | 895-1C-S-H | ||
| 2A (DPNO) | 895-2A-C | 895-2A-V | 895-2A-S | |
Low profile PCB automotive relay
High rating 20A/14VDC ; motor load 5A/14VDC ; maximum carry current up to 35A
Optional SPNO, SPDT, DPNO contact configurations
Complies with RoHS-Directive 2011/65/EU and ELV-Directive 2000/53/EC
