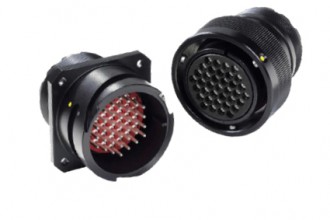

SRC aluminium rail connector with bayonet quick positive locking system. From 6 to 60 crimp contacts over 9 shells and 11 Configurations the SRC connector is a field proven IP66 rated connector.
TE Connectivity SRC Connector series is derivated from MIL5015 standard and adapted to be compliant with NF F 61-030 railway standard with a hard thermoplastic insert which is self-extinguishing and halogen free. Adapted for outdoor applications in panel versions, it offers a choice of up to 9 size shells, 11 arrangements and many angled or straight backshells for integrating in different configurations of cables for cable sizes from 0.5mm2 to 6mm2. SRC also provides a choice of removable and interchangeable inserts (plug and receptacle can be male or female).
SRC Applications |
SRC Functions |
SRC Standards |
|
|
|
Crimp solid contacts AWG16, 12 and 8
Connector design based on the MIL DTL 5015 & VG95234 specifications
Service voltage: up to 500 V
Rated current: from 17 to 45 A
Withstand voltage: up to 3250 V
