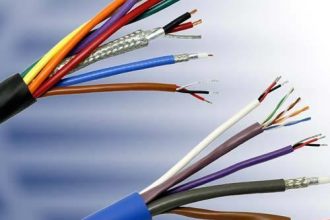

Dalroad supply a diverse range of TE Connectivity T0451 London Underground approved cable. The halogen-free cable jacket material developed by TE is highly fluid resistant, flame retardant, low smoke and low toxicity. TE's rail cable is manufactured in accordance with and compliant to LUL S1121, LUL S1180 standards and hazard specification EN45545-2, R15 HL3.
T0451 TYPE I – 300/500V – Single core; thin wall insulation 300/500V
T0451 TYPE II – 600/1000V – Single core; standard wall insulation 600/1000V
T0451 TYPE III – Single core; enhanced wall insulation
1.8/3kV
T0451 Type V – Sile core; reduced standard wall insulation 600/1000V
T0451 Type VI- Multi-core no screen; standard wall insulation with enhanced wall sheath 600/1000V (uses Type II cores)
T0451 TYPE VII – Multi-core no screen; reduced standard wall insulation with enhanced wall sheath 600/1000V (uses Type V cores)
T0451 TYPE VIII – Screened pair and multi-pair; reduced standard wall insulation 600/1000V (uses Type V cores)
T0451 TYPE IX – Screened pair and multi-pair; thin wall insulation with standard wall sheath 300/500V (uses Type I cores)
| Part number | Conductor Size (mm²) |
Overall Diameter (mm) |
Cable Weight (kg/km) Approx. |
|
| Min. | Max | |||
| T0451-I-0111-0.50-* | 0.5 | 1.37 | 1.45 | 6.6 |
| T0451-I-0111-0.75-* | 0.75 | 1.59 | 1.65 | 8.9 |
| T0451-I-0111-1.00-* | 1 | 1.69 | 1.8 | 10.7 |
| T0451-I-0111-1.50-* | 1.5 | 2.03 | 2.13 | 16 |
| T0451-I-0111-2.50-* | 2.5 | 2.5 | 2.63 | 25.7 |
| T0451-II-1.00-* | 0.5 | 2.8 | 3.2 | 18.1 |
| T0451-II-1.50-* | 1.5 | 3 | 3.5 | 21.3 |
| T0451-II-10.0-* | 10 | 5.8 | 6.8 | 110 |
| T0451-II-150.0-* | 150 | 18.5 | 21.7 | 1390.6 |
| T0451-II-16.0-* | 16 | 7.2 | 8.5 | 174.3 |
| T0451-II-2.50-* | 2.5 | 3.4 | 3.9 | 32.9 |
| T0451-II-240.0-* | 240 | 22.9 | 26.8 | 2279.7 |
| T0451-II-25.0-* | 25 | 8.6 | 10 | 258.2 |
| T0451-II-300.0-* | 300 | 29.7(1) | 31.7(1) | 3011.9 |
| T0451-II-35.0-* | 35 | 10.2 | 11.5 | 354 |
| T0451-II-4.00-* | 4 | 3.9 | 4.6 | 49.2 |
| T0451-II-50.0-* | 50 | 11.6 | 13.5 | 492.2 |
| T0451-II-6.00-* | 6 | 4.6 | 5.4 | 70.2 |
| T0451-II-70.0-* | 70 | 13.3 | 15.5 | 704.8 |
| T0451-II-95.0-* | 95 | 14.9 | 17.4 | 894.4 |
| T0451-III-150.0-* | 150 | 20 | 23.4 | 1469 |
| T0451-III-185.0-* | 185 | 21.6 | 25.3 | 1794 |
| T0451-III-50.0-* | 50 | 13.4 | 15.7 | 552 |
| T0451-III-70.0-* | 70 | 15.1 | 17.7 | 775 |
| T0451-III-95.0-* | 95 | 16.9 | 19.8 | 984 |
| T0451-V-1.00 | 1 | 2.4 | 2.8 | 15.6 |
| T0451-V-1.50 | 1.5 | 2.8 | 3.3 | 20.1 |
| T0451-V-10.0 | 10 | 5.1 | 5.9 | 100.8 |
| T0451-V-1121-1.50-1/6-0 | 1.5 | 7.36 | 7.73 | 74.8 |
| T0451-V-2.50 | 2.5 | 3.2 | 3.8 | 31.6 |
| T0451-V-4.00 | 4 | 3.8 | 4.4 | 48.3 |
| T0451-V-6.00 | 6 | 4.2 | 5 | 65.9 |
| T0451-VI-10X2.50 | 2.5 | 17.5(1) | 19.3(1) | 480 |
| T0451-VI-20X4.00 | 4 | 25.5(1) | 28.1(1) | 1272 |
| T0451-VII-12X1.00 | 1 | 13.7(1) | 15.1(1) | 300 |
| T0451-VII-42X1.50 | 1.5 | 26.5(1) | 29.2(1) | 1134 |
| T0451-VIII-1X2X1.50 | 1.5 | 1.37 | 1.45 | 6.6 |
| T0451-VIII-1X2X1.50 | 1.5 | 2.03 | 2.13 | 16 |
| T0451-VIII-2X2X1.50 | 1.5 | 1.59 | 1.65 | 8.9 |
| T0451-VIII-2X2X1.50 | 1.5 | 2.5 | 2.63 | 25.7 |
| T0451-VIII-3X2X1.50 | 1.5 | 1.69 | 1.8 | 10.7 |
| T0451-VIII-3X2X1.50 | 1.5 | 7.36 | 7.73 | 74.8 |
| T0451-IX-1X2X0.50 | 0.50 | 5.7 | 6.4 | 52.6 |
| T0451-IX-1X2X1.00 | 1.00 | 6.6 | 7.4 | 71.8 |
| T0451-IX-2X2X0.50 | 0.50 | 9.7 | 10.7 | 124.5 |
| T0451-IX-2X2X1.00 | 1.00 | 11.5 | 12.9 | 181.3 |
| T0451-IX-3X2X1.00 | 1.00 | 12 | 13.7 | 219.3 |
| T0451-IX-4X2X1.00 | 1.00 | 13 | 15 | 284.8 |
(1) T0451 Spec Dimensions unable to be met due to excessive bundle to Jacket OD ratio. Standard jacket wall thickness applied.
Approved and listed on the London Underground Approved Product Register (APR)
Cable marked with specification number, type number and TE Connectivity
Excellent handling and flexibility
Dual wall construction
All specified conductor sizes available
All specified colours available
