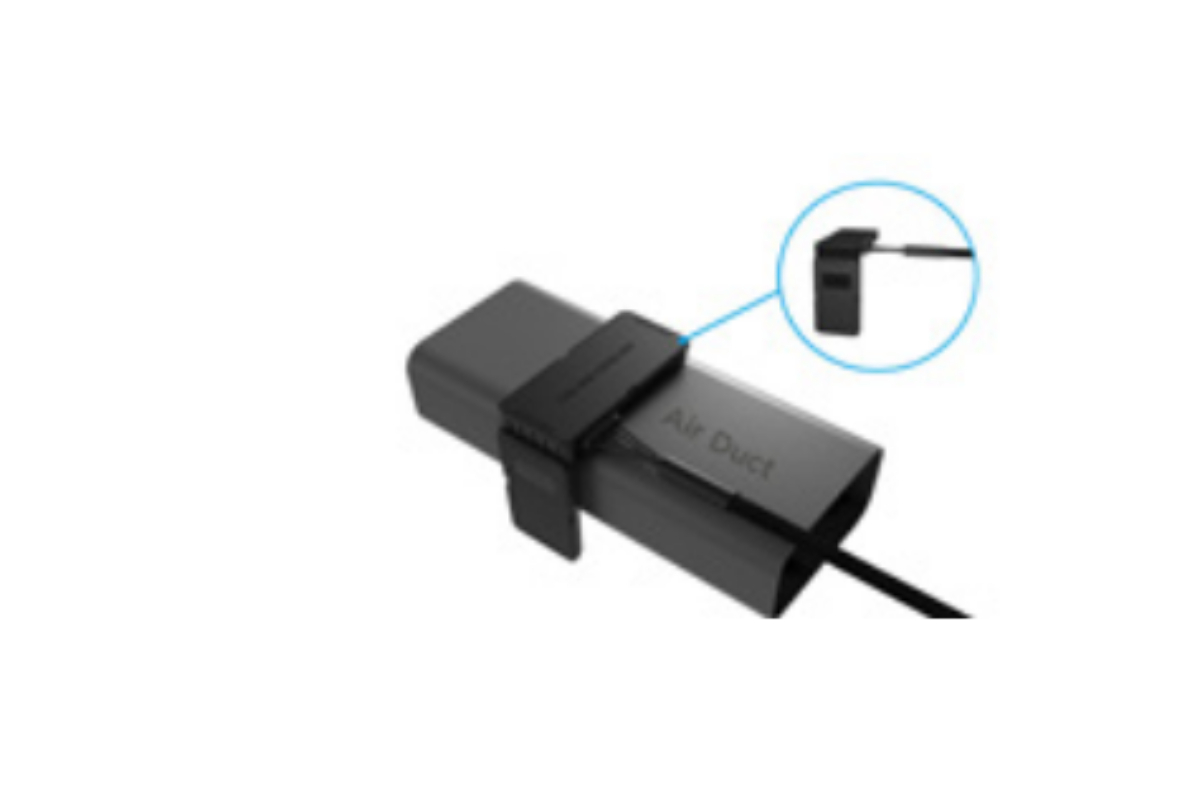

The innovative Trigger family of multi-port/multi-band antennas provide an excellent solution for transportation, aftermarket fleet, public safety and IoT applications. The incorporation of both vertically and horizontally polarised cellular radiating elements has shown to provide improved signal received power and signal received quality.
| Part Number | No. of Ports | Port Type | Frequency (MHz) | VSWR | Peak Gain (dBi) | Cable Type (Length)* | Connector | Colour |
| VQJ69595B-92VC1 | 4 | LTE1 | 698- 960/1710-2700 | <3.1:1 | 5 | LMR100 (or equivalent) – Wi-Fi and LTE;
RG174 – GNSS (Pigtail – 914 mm/3 ft.) |
SMA Male | Black |
| LTE2 | SMA Male | |||||||
| WiFi | 2400-2500/4900-5900 | RPSMA Male | ||||||
| GNSS | 1559 – 1606 | SMA Male | ||||||
| VQJ69595B-92FAK | 4 | LTE1 | 698- 960/1710-2700 | <3.1:1 | 5 | LMR100 (or equivalent) – Wi-Fi and LTE;
RG174 – GNSS (Pigtail – 914 mm/3 ft.) |
Fakra Type D Jack (Purple) | Black |
| LTE2 | Fakra Type D Jack (Purple) | |||||||
| WiFi | 2400-2500/4900-5900 | Fakra Type I Jack (Beige) | ||||||
| GNSS | 1559 – 1606 | Fakra Type C Jack (Blue) | ||||||
| VPJ69595B-92VC1 | 5 | LTE1 | 698- 960/1710-2700 | <3.1:1 | 5 | LMR100 (or equivalent) – Wi-Fi and LTE;
RG174 – GNSS (Pigtail – 914 mm/3 ft.) |
SMA Male | Black |
| LTE2 | SMA Male | |||||||
| WiFi 1 | 2400-2500 | RPSMA Male | ||||||
| WiFi 1 | 4900-5900 | RPSMA Male | ||||||
| GNSS | 1559 – 1606 | SMA Male | ||||||
| VPJ69595B-92FAK | 5 | LTE1 | 698- 960/1710-2700 | <3.1:1 | 5 | LMR100 (or equivalent) – Wi-Fi and LTE;
RG174 – GNSS |
Fakra Type D Jack (Purple) | Black |
| LTE2 | Fakra Type D Jack (Purple) | |||||||
| WiFi 1 | 2400-2500 | Fakra Type I Jack (Beige) | ||||||
| WiFi 1 | 4900-5900 | Fakra Type I Jack (Beige) | ||||||
| GNSS | 1559 – 1606 | Fakra Type C Jack (Blue) |
